Vaihdelaatikon öljyn vaihto.

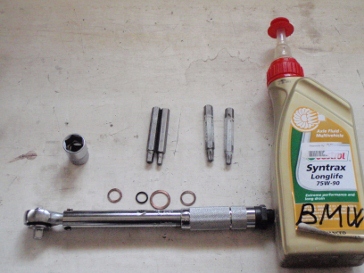

Kyseisessä kuvassa myös tarvikkeet perän öljyn vaihtoon. Katso sitä täältä

Tarvittavat varaosat yms. Öljyä 0,7 l, tiivisteprikat 18x24x1,5 ja 14x18x1,5

Tarvittavat työkalut: 19 mm hylsy (tyhjennys roppu) 8 mm kuusiokolo avain (täyttö roppu) sekä momenttiavain.

Prikat voi hakea autovaraosa liikkeestä, Etra, Tiivistekeskus.







Gearbox-oil change (maintenance)





  Core activity

(Changing gearbox oil


Note

Change oil, warmed to normal operating temperature.
  Draining gearbox oil

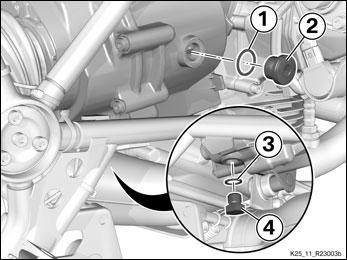

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\23\MODELLE\00\K25_11_R23003b_preview.jpg


Warning

Parts of the exhaust system can be hot.

Do not touch hot parts of the exhaust system.

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Place a suitable tray underneath the gearbox.
D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

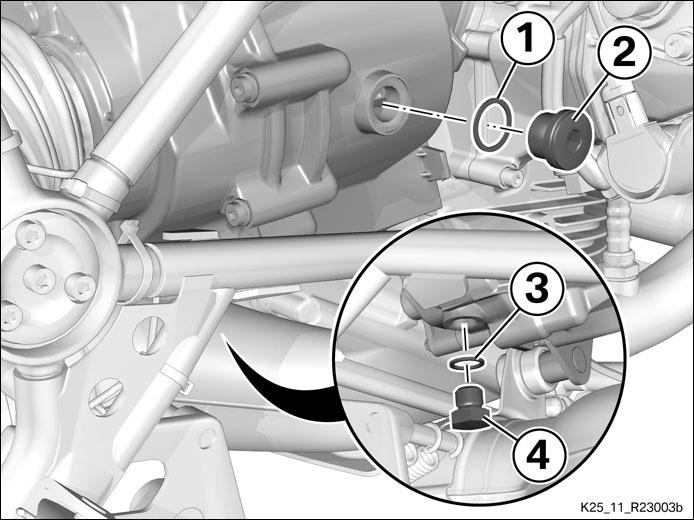

Remove oil filler plug (2) with sealing ring (1).  18x24x1,5 07 11 9 963 300
D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Remove drain plug (4) with sealing ring (3) and drain the gear oil.
D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Remove all chips of metal from drain plug (4).
D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Install drain plug (4) with new sealing ring (3).  14x18x1,5 AL 07 11 9 963 200
D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\SYMB\KG\MODELLE\00\Anziehdrehmoment.gif Tightening torques

Gearbox oil drain plug

M18 x 1.5

30 Nm




  Filling gearbox with oil to correct level

Precondition
D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Drain plug is installed.

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/triangle.gif

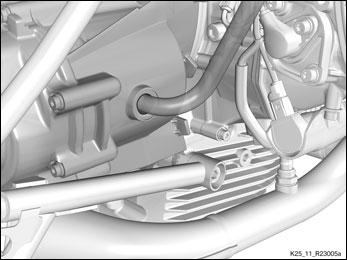

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\23\MODELLE\00\K25_11_R23005a_preview.jpg

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Using a funnel of similar instrument, pour the correct quantity of gearbox oil into the gearbox.
D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\SYMB\KG\MODELLE\00\techdat.gif Technical data

Gearbox oil, capacity

to bottom edge of thread in filler neck

0.7 l



Fluids and lubricants

Castrol SAF-XO

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\23\MODELLE\00\K25_11_R23004b_preview.jpg

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

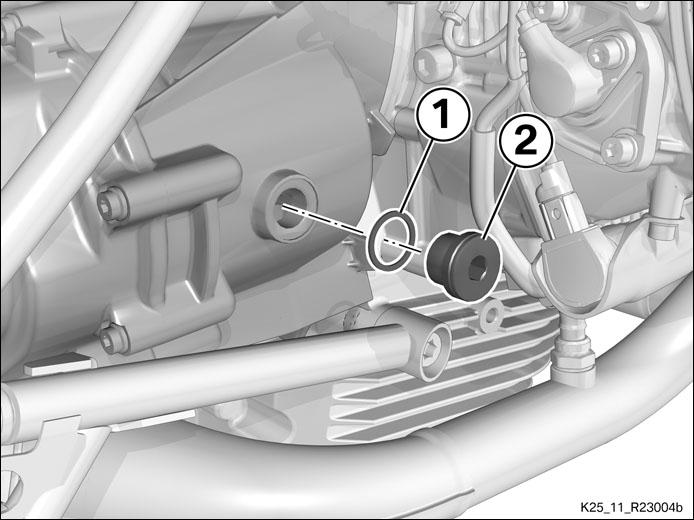

Install oil filler plug (2) with new sealing ring (1).
D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\SYMB\KG\MODELLE\00\Anziehdrehmoment.gif Tightening torques

Gearbox oil filler plug

M14 x 1.5

30 Nm
