Replace shaft sealing ring of axle in housing








  Preparatory work


Removing spray guard



Removing rear wheel



Draining oil from rear wheel drive

  Core activity

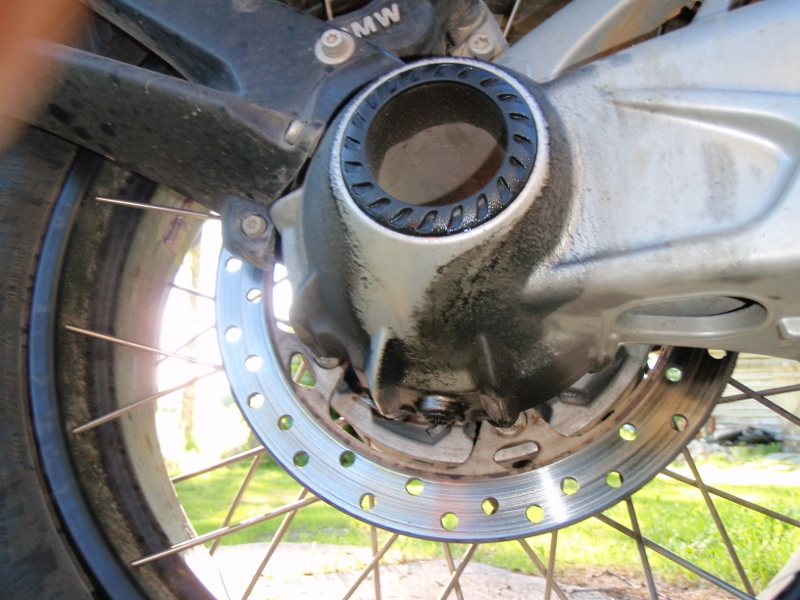

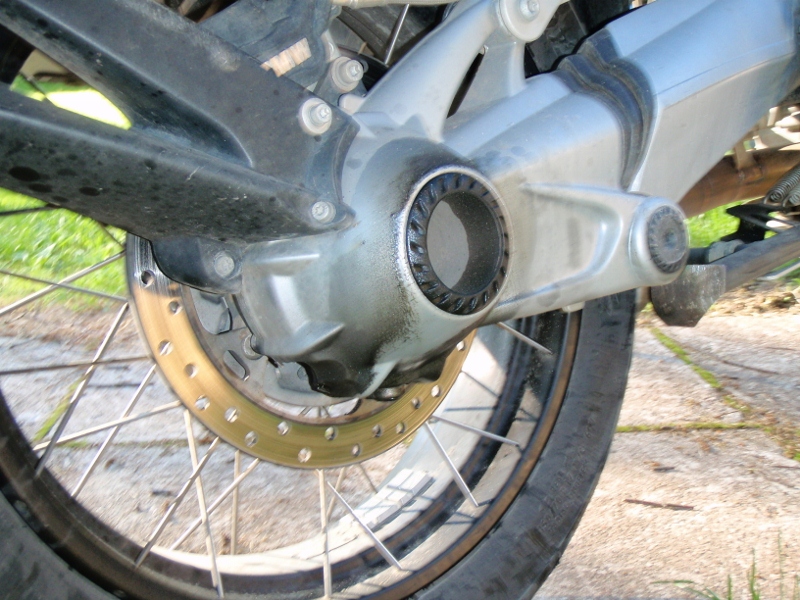

(-) Removing shaft sealing ring of wheel axle from housing
D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

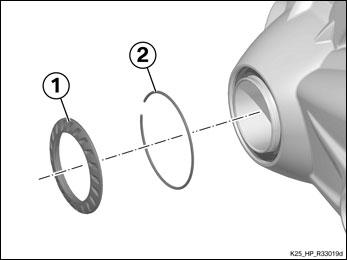

Remove cover (1) and circlip (2), using a suitable tool.


Attention

Drilling too deeply into a shaft sealing ring can result in damage to the components behind the ring.

Always use a stop to prevent the twist drill from drilling too deep.



D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

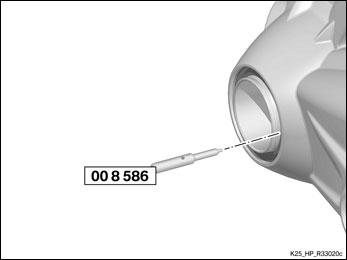

Using drill stop (No. 00 8 586), drill a hole into the shaft sealing ring.

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\SYMB\KG\MODELLE\00\techdat.gif Technical data

Drilling into shaft sealing ring

Drill-bit stop

3 mm



Hole diameter

2.5 mm


D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

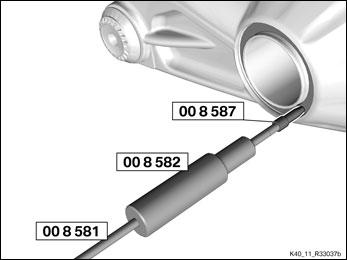

Remove shaft sealing ring with pull rod (No. 00 8 581), impact weight (No. 00 8 582) and adapter(No. 00 8 587).

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Check the bearing for metal particles; clean if necessary.


(-) Installing shaft sealing ring of wheel axle in housing
D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Lightly oil sealing lip of shaft sealing ring (1).

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\SYMB\KG\MODELLE\00\betriebsm.gif Fluids and lubricants

Castrol SAF-XO

Transmission oil

33 11 7 695 240


D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

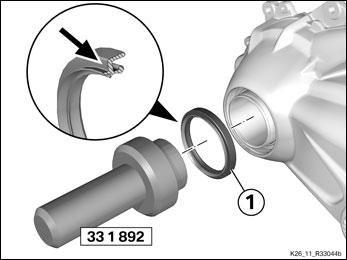

Position shaft sealing ring (1) with the closed side out (arrow) and use drift (No. 33 1 892) to install it until fully seated.

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Install circlip (2) and cover (3).

  Finishing work


Filling rear-wheel drive with oil (oil change)



Installing rear wheel



Installing spray guard



Final check of work performed
