Tarvittavat varaosat yms. Öljyä 1,8 dl, o -rengas 11,2x1,8 ja tiiviste prikka 12x16x1,5.

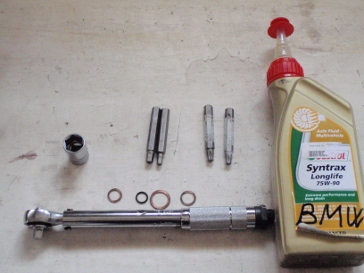

Tarvittavat työkalut: Torx 50 (rengas irti) Torx 45 (tyhjennys roppu) 6 mm kuusiokolo avain (täyttö roppu) sekä momenttiavain.

O-renkaita ja prikat voi hakea autovaraosa liikkeestä, Etra, Tiivistekeskus. O renkaat materiaalit.

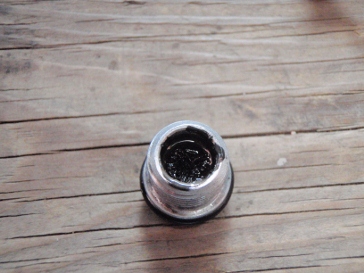

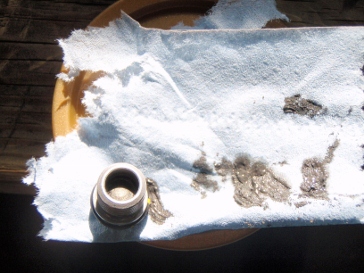

Tyhjennys ropussa magneetti jonne tulee rautaa joten hyvä puhdistaa. Tämän verran oli jo ajettu 8000 km peräremontin jälkeen. Öljyt on vaihettu nyt toisen kerran remontin jälkeen. Ensimmäinen öljynvaihto 200 km jälkeen remontin.

$D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\SYMB\KG\MODELLE\00\hinweis.gif$

Note

Change gearbox oil, warmed to normal operating temperature.

Draining oil from rear wheel drive

$D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\33\MODELLE\00\K25_R33912b_preview.jpg$

$D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif$

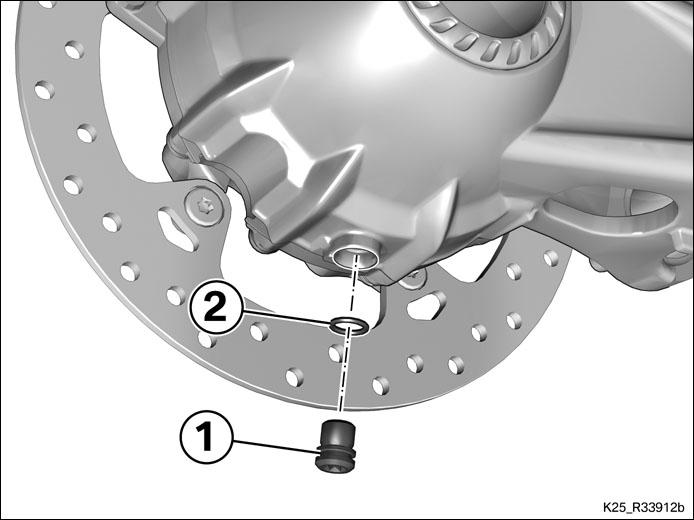

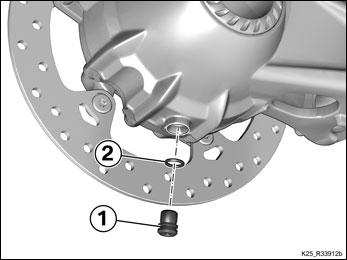

Remove oil drain plug (1) with O-ring (2).

$D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif$

Drain the oil.

$D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\SYMB\KG\MODELLE\00\hinweis.gif$

Note

Move the motorcycle so that the oil drain bore is at the very bottom.

$D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif$

Check O-ring (2) for damage; replace if necessary.

$D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif$

Install oil drain plug (1) with O-ring (2). 11,2x1,8 33 11 7 695 219

$D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\SYMB\KG\MODELLE\00\Anziehdrehmoment.gif$ Tightening torques
Oil drain plug in bevel gears
M12 x 1	20 Nm

Filling rear-wheel drive with oil (oil change)

$D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\33\MODELLE\00\K25_R33913b_preview.jpg$

$D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif$

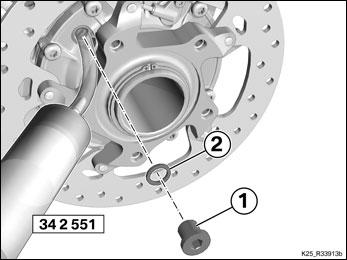

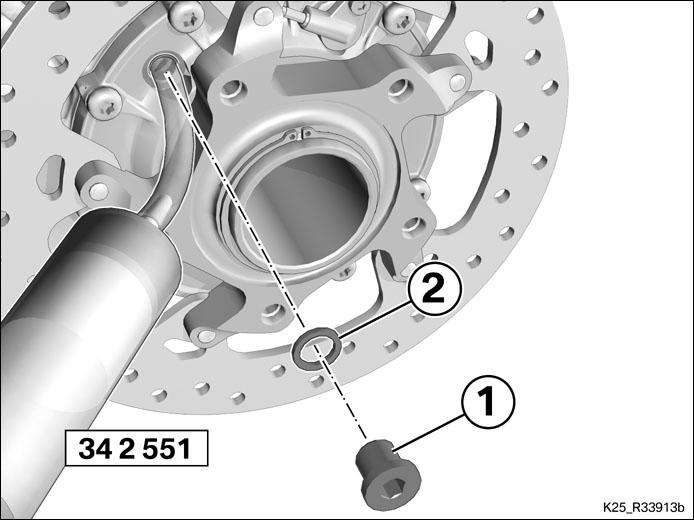

Remove oil filler plug (1) with sealing ring (2).

$D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\SYMB\KG\MODELLE\00\achtung.gif$

Attention

Any mixture of oil, brake fluid and clutch fluid, even if the quantities involved are minute, can attack and damage seals.

Always use separate sets of syringes and hoses for the individual fluids, in order to avoid the risk of one fluid contaminating another.

$D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif$

Use syringe (No. 34 2 551) to inject the gear oil into the housing.

$D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\SYMB\KG\MODELLE\00\techdat.gif$ Technical data
Rear-wheel drive, oil capacity	Oil change	180 ml
	Fluids and lubricants
	Castrol SAF-XO

$D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif$

Install oil filler plug (1) with new sealing ring (2).12x16x1,5 07 11 9 963 132

$D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\SYMB\KG\MODELLE\00\Anziehdrehmoment.gif$ Tightening torques

Oil filler plug in final drive housing

M12 x 1.5

with sealing ring 12 x 16

20 Nm
